FE 220 DMP-24
Hybrid cleaner
The FE 220 DMP - 24 hybrid cleaner combines high-pressure and steam cleaning in a single device. This outstanding combination ensures thorough cleaning even on sensitive surfaces and, thanks to the high temperature, surfaces are disinfected at the same time. The cleaner uses innovative continuous flow heater technology to ensure consistently consistent performance, making the device ideal for daily cleaning in various businesses. The pressure and operating temperature can be continuously adjusted so that the device can be flexibly adapted to the requirements of each application.
![](http://frank-hdr.com/cdn/shop/files/frank-hochdruckpistole_small.png?v=1723018207)
Gun ST-2300
![](http://frank-hdr.com/cdn/shop/files/frank-fe-hochdruck-dampflanze_small.png?v=1723018348)
Lance 500mm
![](http://frank-hdr.com/cdn/shop/files/frank-hochdruckschlauch_small.png?v=1723018182)
HP hose 15 m
Technical data
Operating pressure | 25 -170bar |
Volume flow | 2 - 4 l/min |
Operating temperature | 99 - 145 °C |
Heating capacity | 24kW |
Electrical connection* | 3Ph / 400V / 50hz |
Water tank | Mains water connection |
Dimensions | 1070x415x950mm |
Weight | 120kg |
Downloads
Choose options
![Ein Produktbild eines mobilen, elektrisch beheizten FRANK Hybridreinigers der FE-Serie](http://frank-hdr.com/cdn/shop/files/frank-fe-hybridreiniger.webp?v=1723026941&width=1400)
Product features
![Grafische Darstellung von Hochdruckreinigung und Dampfreinigung](http://frank-hdr.com/cdn/shop/files/frank-produktfeature-zwei-in-eins.webp?v=1723111453&width=1400)
2 in 1 cleaning
With just one device you can clean with both high pressure and steam while using little water.
![Grafische Darstellung der Abschaltverzögerung Variostop](http://frank-hdr.com/cdn/shop/files/frank-produktfeature-variostop.webp?v=1723096569&width=1400)
VARIOSTOP
When the spray gun is closed, the machine is switched off with a time delay via the "VARIOSTOP" system (adjustable from 2 to 60 seconds). The device switches to pressure-free bypass operation until it is switched off.
![Eine Darstellung des FRANK Durchlauferhitzers](http://frank-hdr.com/cdn/shop/files/frank-durchlauferhitzer.jpg?v=1723021363&width=1400)
Instantaneous water heater
Our FRANK instantaneous water heater is significantly more efficient than conventional boiler systems and ensures consistent steam quality.
![Druck- und Temperaturregler eines FRANK Hybridreinigers](http://frank-hdr.com/cdn/shop/files/frank-fe-druckregler-temperaturregler.jpg?v=1723021380&width=1400)
Pressure & temperature regulators
Pressure and temperature can be adjusted continuously.
![Eine Lanzenhalterung eines FRANK Hybridreinigers](http://frank-hdr.com/cdn/shop/files/frank-fe-lanzenhalterung.jpg?v=1723021327&width=1400)
Lance quiver
The lance can be stored in a quiver attached to the machine.
Areas of use and application
![Ampullen werden in einer Fabrik über ein Förderband transportiert](http://frank-hdr.com/cdn/shop/files/frank-einsatzgebiet-pharmaindustrie.jpg?v=1723023725&width=1400)

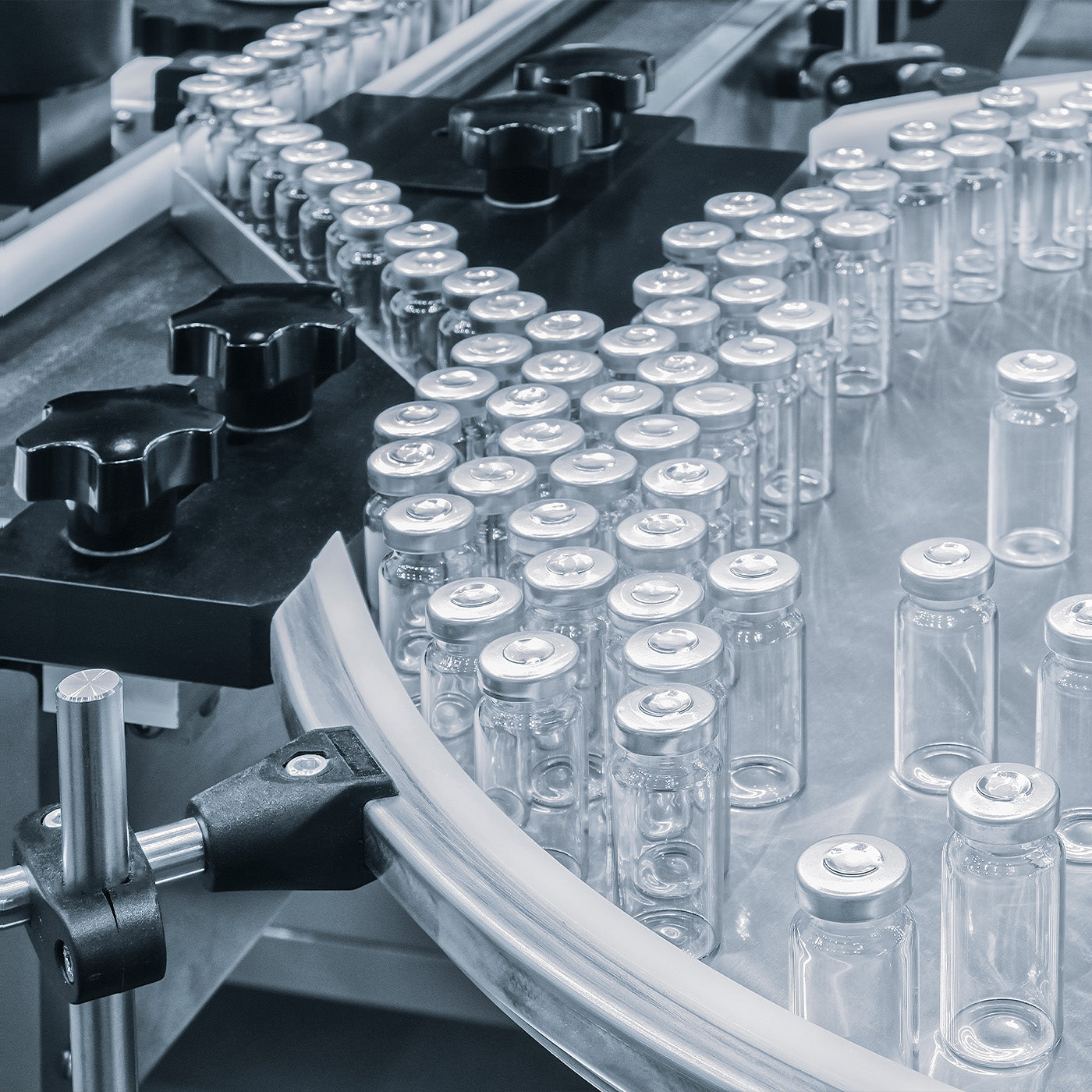

Pharmaceutical production
![Ein sauberes Behandlungszimmer in einem Krankenhaus mit einer Liege und mehreren medizinischen Instrumenten](http://frank-hdr.com/cdn/shop/files/frank-einsatzgebiet-krankenhaus.jpg?v=1723023709&width=1400)
Hospitals
![Brötchen laufen in einer Großbäckerei auf einem Förderband aus einem Ofen](http://frank-hdr.com/cdn/shop/files/frank-einsatzgebiet-lebensmittelindustrie.jpg?v=1723024291&width=1400)
