Dry steam cleaner
Dry steam cleaner for industrial use
Our extensive product portfolio of dry steam cleaners offers versatile application possibilities for professional use in a wide range of industries. FRANK dry steam cleaners are used in the medical or care sector for disinfecting and sterilizing cleaning.
In industry or in the area of machine and plant cleaning, they are used to remove coarse residues or to clean hard-to-reach areas. Together with you, we will find the optimal cleaning system for your individual application.
Our dry steam cleaners are available with different heating systems. There are models that are electrically heated and models that are heated with oil/gas.
Mobile dry steam cleaners
Experience the flexibility of our mobile dry steam cleaners. Ideal for professional use in a wide range of industries, they offer thorough and environmentally friendly cleaning wherever you need it. Our mobile models enable effective removal of dirt and residue without the use of chemicals and are ready for immediate use.

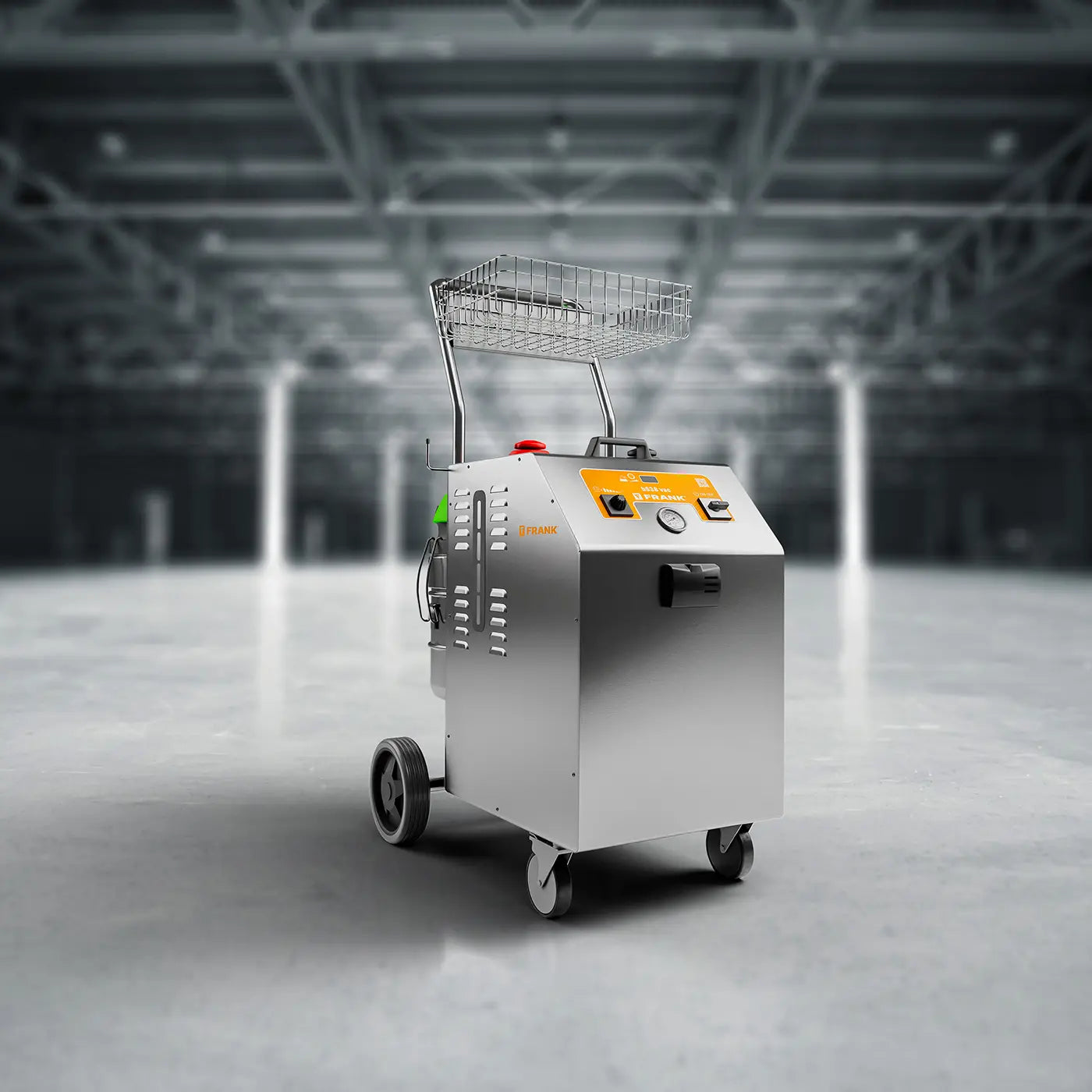

bSteam series
The steam cleaners in the bSteam series combine power and flexibility. With their mobile frame, they can be moved easily and are quickly ready for use at the desired location. The high steam temperature and a working pressure of up to 8 bar make them versatile. The steam quantity regulator also allows the steam quantity to be adjusted granularly.
bSteam steam cleaners are ideal for industrial use, in the hotel industry, as well as in catering and gastronomy.

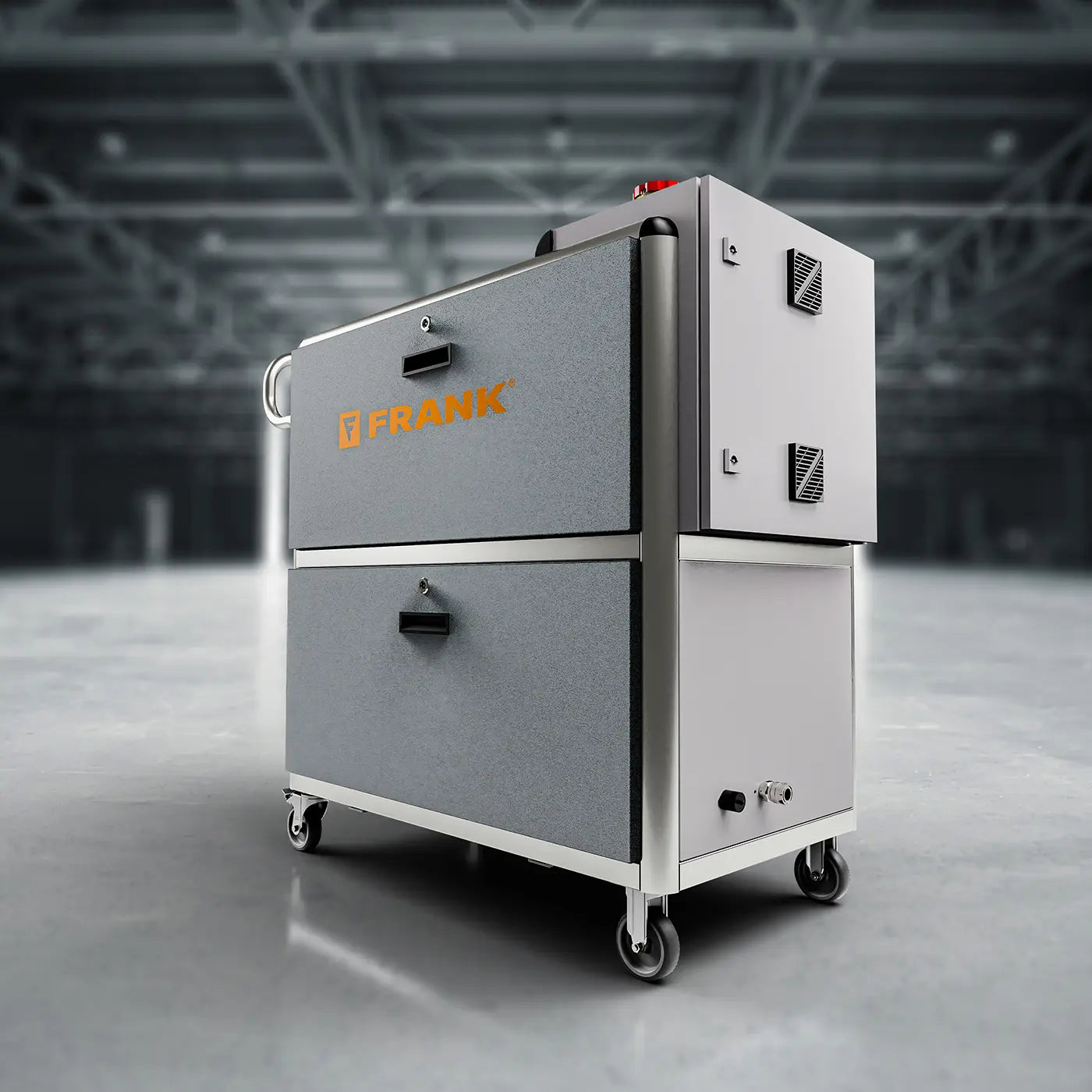

iSteam series electrically heated
The electrically heated models of the iSteam series impress with their strength and performance. The innovative continuous heating system has a significantly higher level of performance than boiler systems and achieves faster steam generation.
Thanks to the Siemens PLC control, our iSteam machines can also be integrated into existing systems with robot systems. Due to the ergonomically shaped gun and the consistent pressure, they are often used for continuous operation.

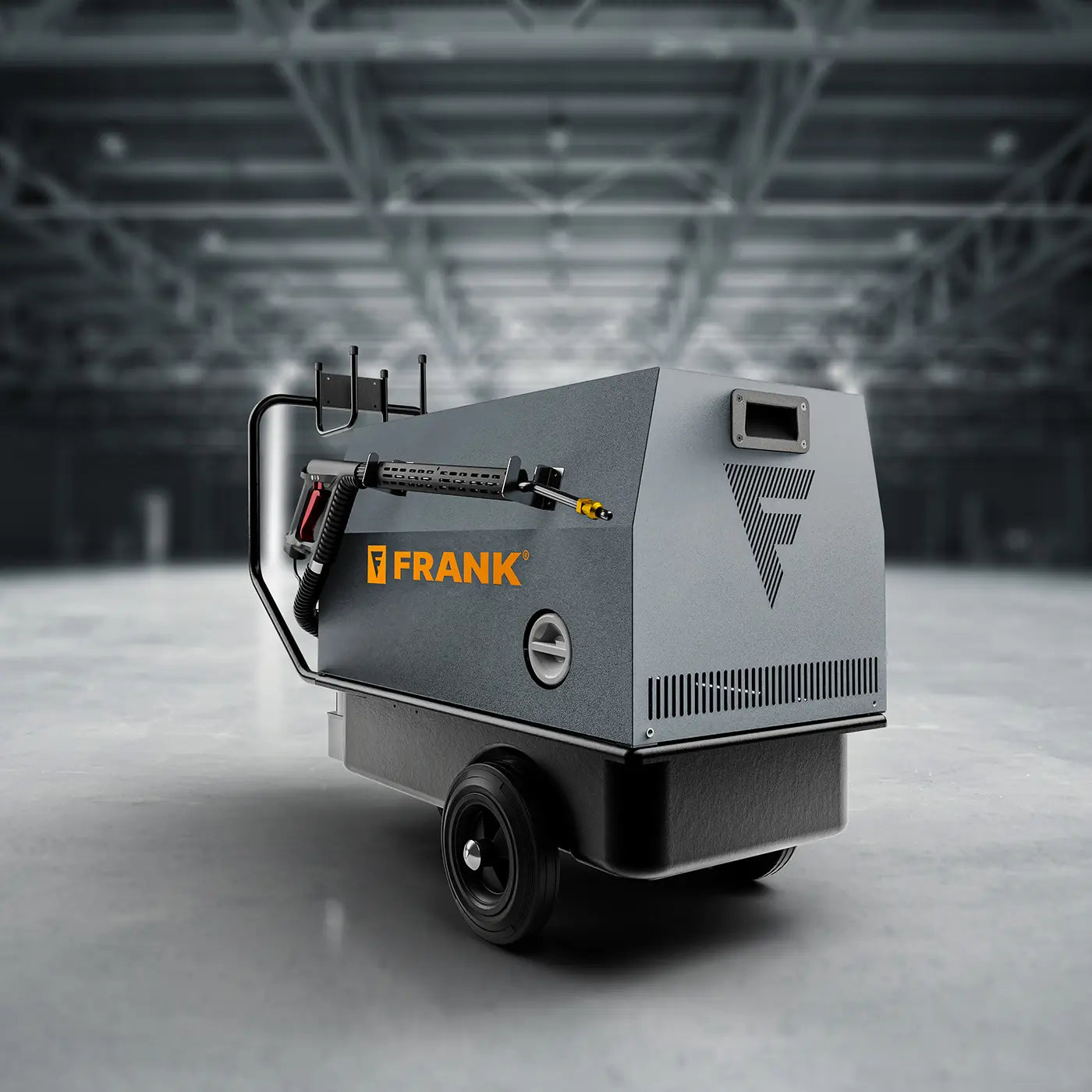

iSteam series oil/gas heated
The oil or gas-fired models in the iSteam series impress with their strength and performance. The innovative continuous heating system has a significantly higher level of performance than boiler systems and achieves faster steam generation.
Due to the ergonomically shaped gun and the consistent pressure, they are often used for continuous operation.
mSteam series
The dry steam cleaners in the mSteam series are characterized by a constant steam volume, a variable adjustable steam quantity and an ergonomically shaped steam gun with remote control. The electric steam cleaner is equipped with an industrial hose and mains water connection. The innovative continuous heating rod system also ensures significantly higher efficiency compared to boiler systems.
Stationary dry steam cleaners
Discover the efficiency of our stationary dry steam cleaners from FRANK! Perfect for long-term professional use, they offer thorough and environmentally friendly cleaning directly at your location. Our stationary models are ideal for the continuous removal of dirt and residues, without the use of chemicals, and are ready for use at any time. Find out how our stationary dry steam cleaners can sustainably improve your cleaning processes.
The advantages of FRANK dry steam cleaners at a glance
Low physical exertion
The high cleaning power combined with the easy-to-use lance enables a particularly body-friendly way of working.
Saving cleaning agents
With FRANK dry steam cleaners you can save yourself many work steps, the use of different equipment and countless cleaning agents.
For almost all surfaces
The excellent properties of steam enable deep and gentle cleaning of surfaces regardless of material and structure.
Popular areas of application
Food industry
Dry steam removes production residues such as oils and greases effortlessly and without the use of cleaning chemicals.

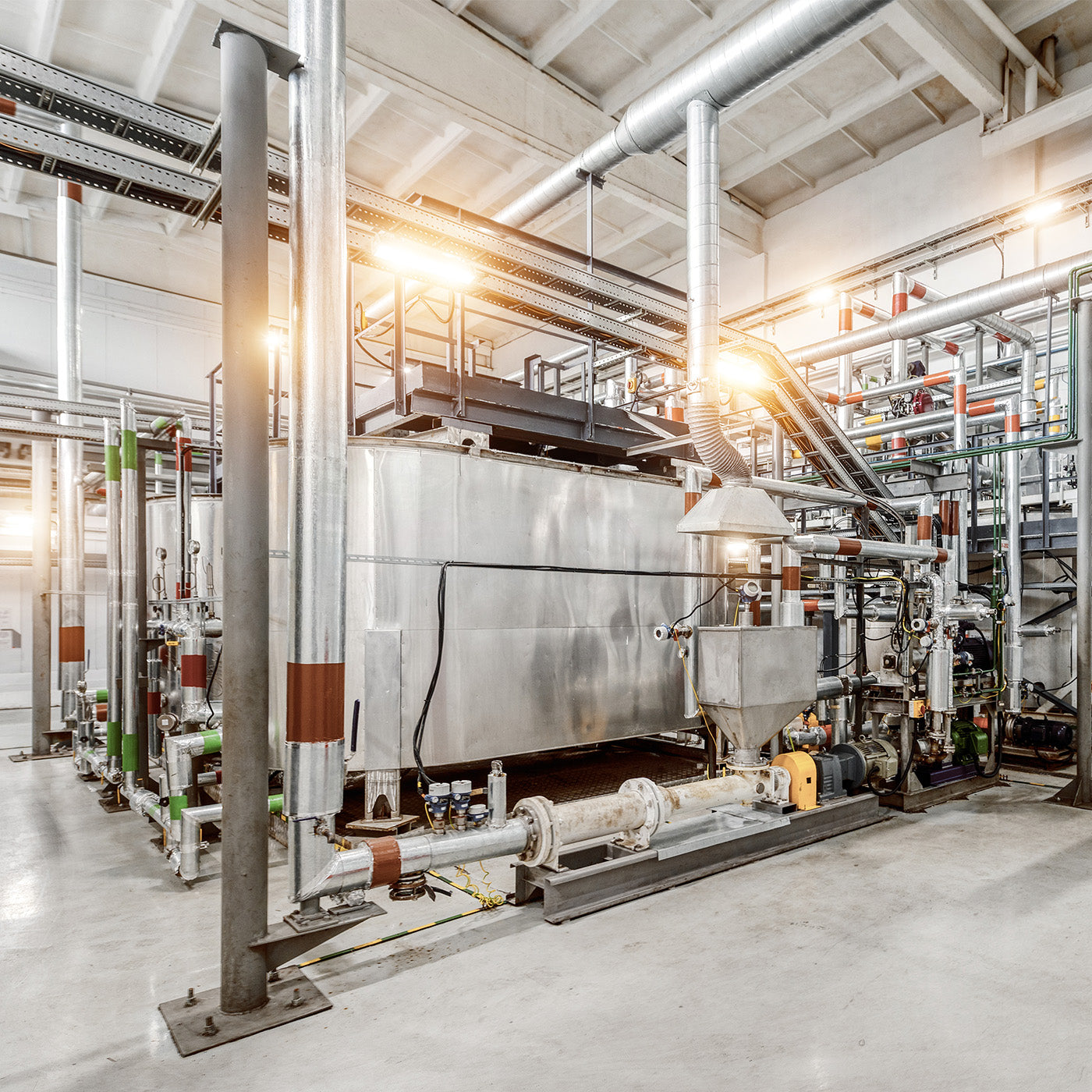

Industry
Dry steam cleaners are the ideal solution for cleaning large or structured surfaces, joints and paving stones, as the steam reaches every nook and cranny and penetrates deep into the surface.
HO.RE.CA
By using dry steam, dirt and bacteria can be removed gently and reliably and even the highest hygiene standards can be met.
Medical & nursing sector
Dry steam cleans surfaces gently and thoroughly. At the same time, the high temperature of the steam enables thermal disinfection, which often means that additional cleaning agents are not required.
More information
Steam with a temperature of around 150° C is called “wet steam”. Steam is called dry steam when it no longer contains any liquid water droplets. The temperature is above 170 to 190° C. The higher the pressure and temperature of the steam, the drier it is. Temperatures above 300° C are called “hot steam”.
Conventional steam cleaners work with steam that is over 100 degrees hot and with low pressure. The combination of hot steam and low water pressure means that steam cleaners clean intensively, but they expose the material to a lot of moisture. Depending on the object, this can result in long drying times, and there is a risk of mold formation and moisture damage.
FRANK dry steam cleaners work with up to 8 bar operating pressure and have a special nozzle that leaves less than 5 percent residual moisture in the material being cleaned. This means that even mattresses are completely dry and usable again shortly after the cleaning process. With our dry steam cleaners you can also clean effortlessly, disinfect and completely remove all odors.
We attach great importance to sustainable and environmentally friendly technologies. Based on two different methods, our dry steam cleaners work either according to the boiler or the instantaneous water heater principle.
With boiler technology, the water is permanently heated to over 100 degrees. Once the working pressure of the steam is reached, it can be used for cleaning in a controlled manner. The energy requirement is higher here because the water must be permanently kept at a temperature of over 100 degrees.
With the instantaneous water heater technology, energy is only required when the device is being used. When the spray gun is operated, the cold water is passed through the instantaneous water heater, heated to over 100 degrees and immediately used as steam for cleaning. The advantage of this technology is the environmentally friendly and resource-saving use of energy. In addition, you have a permanent working pressure with finely adjustable steam quality at your disposal.
Our dry steam cleaners have no abrasive effect and are therefore not suitable for applications where residues are to be mechanically removed from a surface using water pressure. For these applications, we offer FRANK high-pressure cleaners for industry.
You should also check all heat-sensitive objects to see whether they are suitable for cleaning with steam at temperatures over 100 degrees. This includes, for example, painted surfaces, thin plastics or sensitive materials such as silk or velour
The prices of our dry steam cleaners start at 1,500 euros and are influenced by the following factors:
- Heating power
3 kW to 144 kW possible - Heating system
230 volt or 400 volt electrically heated or gas/oil heated - Operation
Manual or PLC control - Area of application
Mobile or stationary - Execution
Boiler or instantaneous water heater technology - Pressure and temperature performance
Up to 180 bar high pressure and 185 degrees steam temperature possible
