Belt Sanitation Unit Flex


Conveyor belt cleaner

The Belt Sanitation Unit Flex (BSU Flex) is part of a semi-automated system for cleaning closed conveyor belts, which is particularly used when the belt is extremely wide. Like the normal BSU, it works with hot steam to remove residues and decontaminate the belt. During ongoing production, it can clean a section of the conveyor belt and is then manually moved to the next section until the belt is completely cleaned. This is an elegant, more cost-effective solution, especially when there are long breaks in the production section anyway.

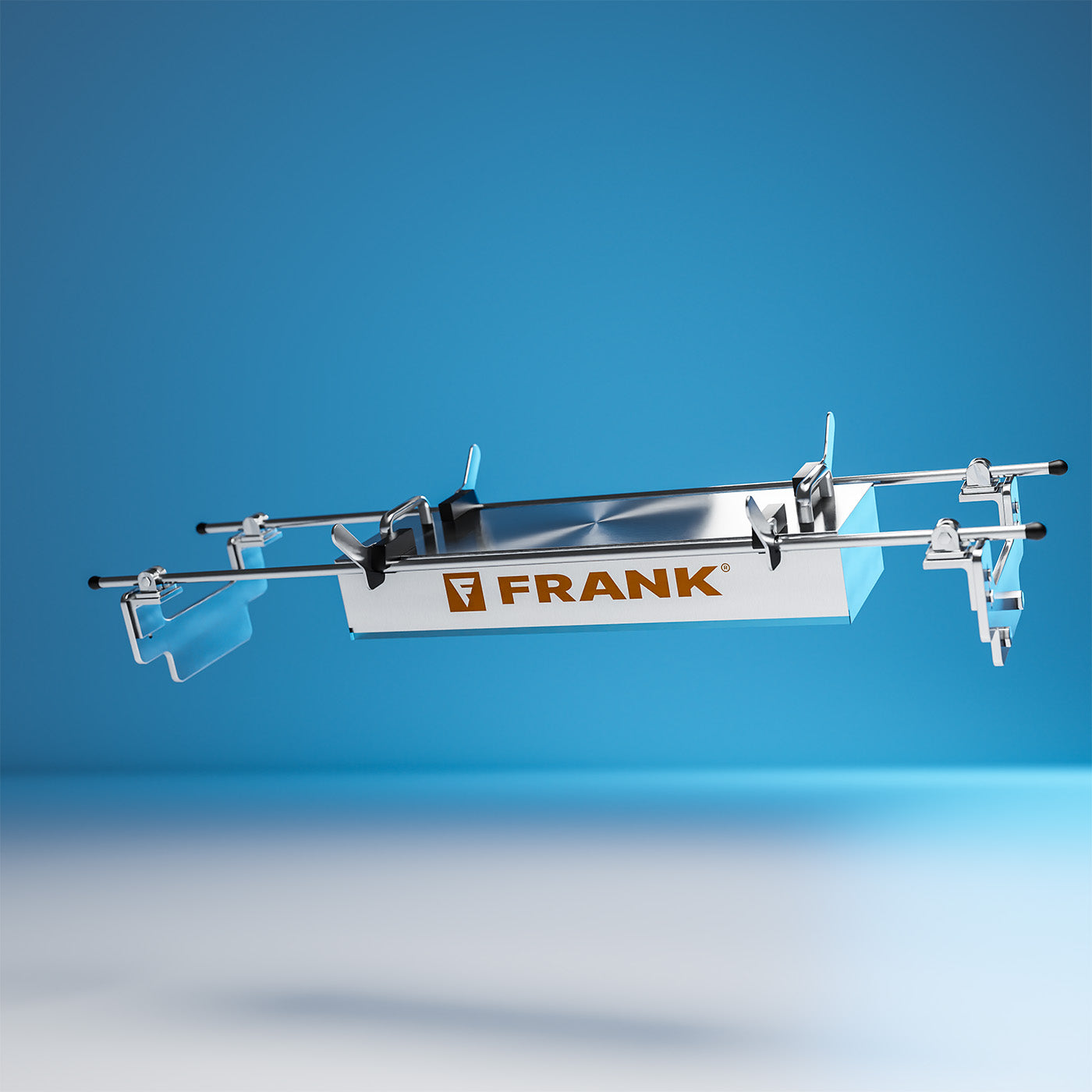

Ein Produktbild des FRANK Förderbandreinigers Belt Sanitation Unit Flex
Belt Sanitation Unit Flex Sale price

How do our belt cleaning systems work?

Our belt cleaning systems always consist of several components that are perfectly tailored to the conveyor belt to be cleaned. Depending on the type and width of the belt, a different belt cleaner, more steam output or a more powerful vacuum cleaner is required. However, the basic structure of our belt cleaning systems with dry steam cleaner, belt cleaner and vacuum cleaner always remains the same.

Eine Darstellung des Funktionsprinzips eines FRANK Förderbandreinigungssystems

The components

Belt cleaner

Our unique conveyor belt cleaners are perfectly adapted to different types of belt and form a cleaning chamber directly on the belt. Here the dry steam can develop its full effect and dirt can be effectively removed.

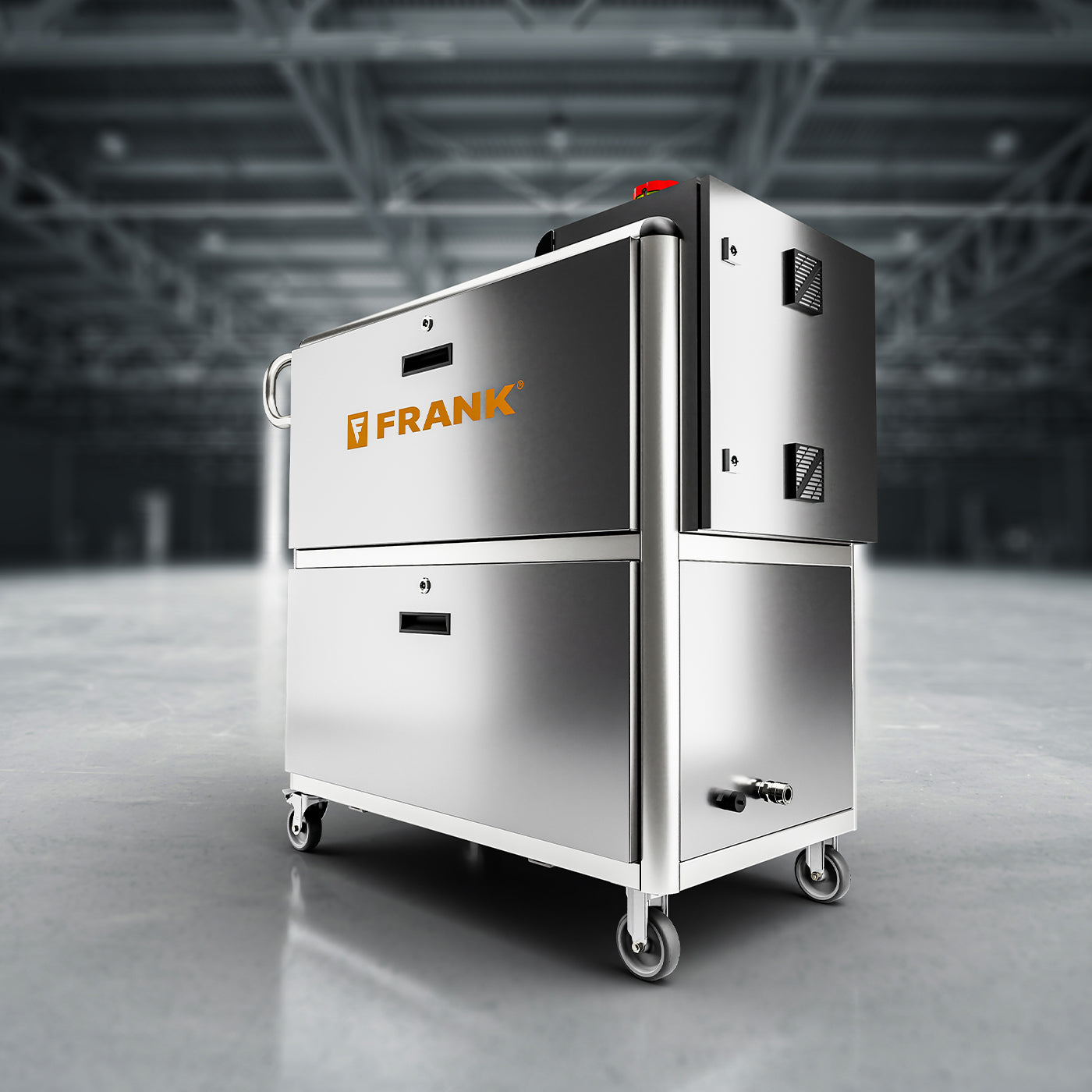

Steam cleaner

Our belt cleaning systems are powered by dry steam. It penetrates deep into the surface of the belts and reaches every nook and cranny. The high temperature also ensures thermal disinfection of the belt.

Industrial vacuum cleaner

The loosened dirt is removed quickly and reliably by our industrial vacuum cleaners. Thanks to the combination of vacuum cleaner and dry steam, the belt is almost immediately dry after the cleaning process.

Eine Darstellung des Funktionsprinzips eines FRANK Förderbandreinigungssystems

Belt cleaner

Our unique conveyor belt cleaners are perfectly adapted to different types of belt and form a cleaning chamber directly on the belt. Here the dry steam can develop its full effect and dirt can be effectively removed.

Steam cleaner

Our belt cleaning systems are powered by dry steam. It penetrates deep into the surface of the belts and reaches every nook and cranny. The high temperature also ensures thermal disinfection of the belt.

Industrial vacuum cleaner

The loosened dirt is removed quickly and reliably by our industrial vacuum cleaners. Thanks to the combination of vacuum cleaner and dry steam, the belt is almost immediately dry after the cleaning process.

How much power do I need?

Depending on the module width, more or less steam power is required to clean the conveyor belt efficiently and thoroughly. Although the right choice of power depends on other factors such as the condition of the belt, we generally recommend the following dry steam cleaners:

Grafische Darstellung der Bandbreite eines Förderbandes

up to 400mm

For very narrow belts we recommend using our dry steam cleaner mS 10 .

Grafische Darstellung der Bandbreite eines Förderbandes

up to 600mm

For smaller belts up to 600 mm, the dry steam cleaner iS 18 should be used.

Grafische Darstellung der Bandbreite eines Förderbandes

up to 800mm

For a belt width between 600 and 800 mm, our dry steam cleaner iS 36 should be used for optimal results.

Grafische Darstellung der Bandbreite eines Förderbandes

from 800mm

For widths of 800 mm and above, we recommend using our stronger machines such as the iS 54 or iS 72 CIP .
